Product archive · Intraoral generator

Owandy-RX AC

Q: What should I replace my Owandy-RX AC with?

With the Owandy-RX DC , the high-frequency version: same arms, same cones and same ergonomics, with variable high voltage from 60 to 70 kV, exposure times accurate to 1/100th of a second and an optional wireless trigger.

The Owandy-RX AC was the alternating-current version of the Owandy-RX intraoral generator, available as a wall-mounted unit (upper or lower bracket) or as a mobile unit on a cart. A sturdy, vibration-free device compatible with film, digital sensors and phosphor plate systems, it equipped thousands of practices before being withdrawn from the catalogue in August 2026 in favour of the high-frequency DC version.

View the documentation Discover the successor

70 kV · 8 mA17 exposure times from 0.08 to 3.2 s

2 headson a single timer

3 arms40, 80 or 110 cm, wall-mounted or mobile

Owandy-RX AC complete — timer, pantograph arm and tube head

Watch the installation video

Official video

The Owandy-RX on video: installing the generator

Step-by-step wall installation of the Owandy-RX generator: timer, bracket, pantograph arm and tube head. The video shows the DC version, whose mechanics, arms and tube head are identical to those of the Owandy-RX AC.

Timer and tube head

A constant dose, no repeat exposures

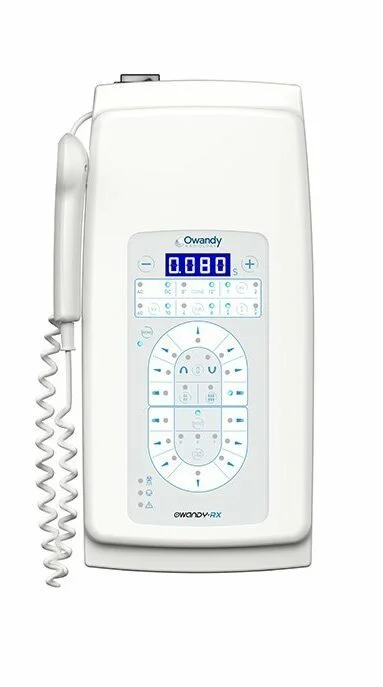

Its microprocessor timer drove up to two tube heads and automatically corrected the exposure time according to mains fluctuations, for a constant dose and no repeat exposures. The one-piece light-alloy tube head, oil-immersed, housed the tube at the rear of the casing for a source-to-skin distance 50% greater than conventional designs; the pantograph arm, adjustable in height and depth, came in three lengths.

Key features

Generator

Single-phase · 70 kV · 8 mA · exposure time 0.08 to 3.2 s in 17 steps · duty cycle 1:32.

Timer

Microprocessor, automatic compensation of mains fluctuations · up to 2 tube heads · confirmed film / digital selection.

Tube and head

Toshiba DG-073 or CEI OX70 tube, 0.7 mm focal spot · 5.5 kg one-piece head, 300° rotation · increased source-to-skin distance.

Cones

Short 20 cm, long 31 cm, rectangular 44 × 35 mm (31 cm) · bisecting and paralleling techniques.

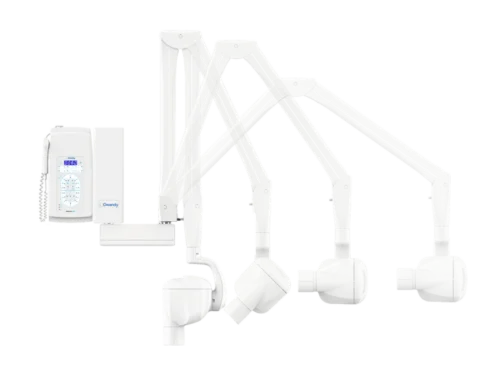

Arm and mounting

Pantograph arm in 3 lengths (40, 80, 110 cm) · high or low wall mounting · 50 kg mobile version · 19.5 kg wall-mounted set.

Power and standards

115 / 220 / 230 V, 50/60 Hz · class I type B · class IIb medical device · remote control on extendable cable > 2 m.

Downloads

Owandy-RX AC documentation

User manual (09/2024 edition) in six languages, in PDF format.

PDF

For any other documentation, please contact our technical support.

FAQ

Frequently asked questions from Owandy-RX AC users.

01.

Can my Owandy-RX AC still be repaired and serviced?

Yes. The product has not been sold since August 2026 but it is still recent: parts, maintenance and exposure factor checks are provided by our network. Contact technical support and quote the serial number.

02.

Where can I find the Owandy-RX AC manual?

The user manual (September 2024 edition) is available above in French, English, Spanish, Italian, German and Portuguese.

03.

Can I use a digital sensor with my Owandy-RX AC?

Yes: the generator is compatible with film, digital sensors (ONE, Opteo) and phosphor plates (Owandy-CR). The timer offers separate exposure values for film and digital.

04.

What should I replace my Owandy-RX AC with?

With the Owandy-RX DC, the high-frequency version: same arms, same cones and same ergonomics, with variable high voltage from 60 to 70 kV, exposure times accurate to 1/100th of a second and an optional wireless trigger.

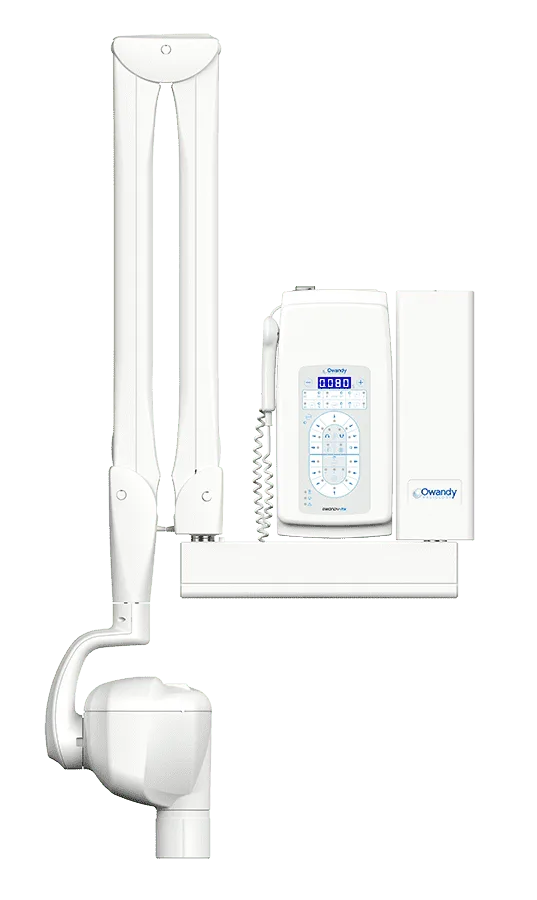

Owandy-RX DC — successor to the Owandy-RX AC

The successor

The successor: Owandy-RX DC

The Owandy-RX DC keeps the frame, arms and cones of the AC version and moves to high frequency:

High-frequency DC technology: lower dose by eliminating soft radiation
Variable high voltage 60–70 kV, times accurate to 1/100th of a second
Optional wireless trigger, 3 arm lengths, mobile cart

Discover the Owandy-RX DC

I-MAX 3D XPRO

LEARN MORE >>

I-MAX 3D CEPH XPRO

LEARN MORE >>

I-MAX CEPH PRO

LEARN MORE >>

I-MAX PRO

LEARN MORE >>

OWANDY CR

LEARN MORE >>

CAPTEUR OPTEO

LEARN MORE >>

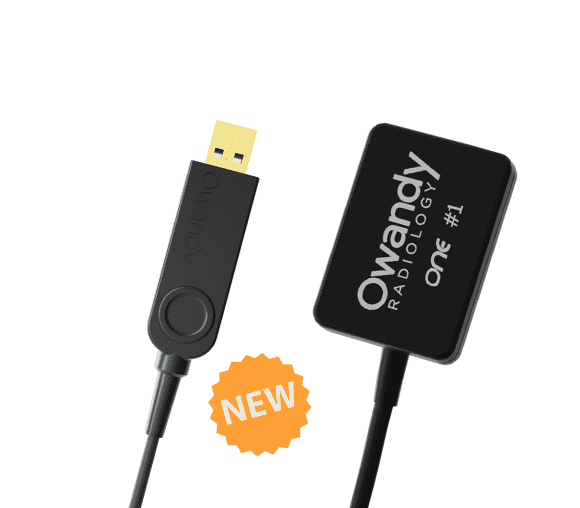

CAPTEUR ONE
